PORTO ALEGRE
 Rio Grande do Sul . Brazil

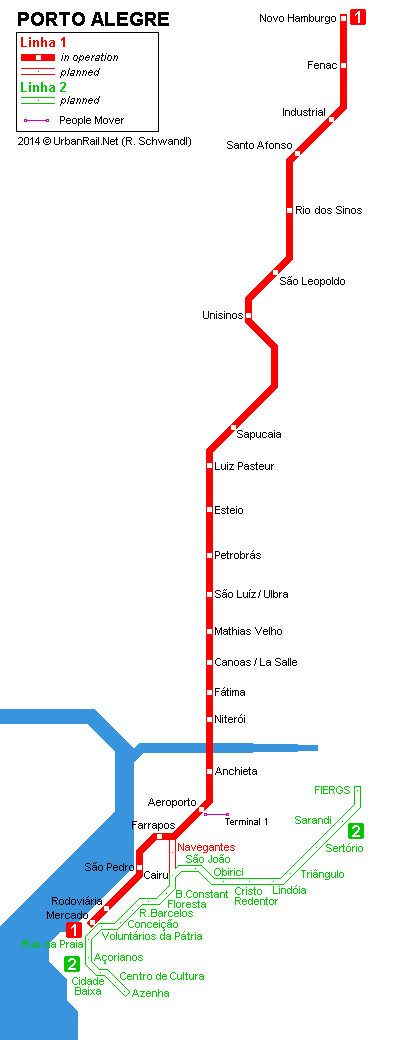

Porto Alegre Metro Network  (c) UrbanRail.Net



 System

Porto Alegre lies in the southern Brazilian state of Rio Grande do Sul and has some 3.5 million inhabitants in the metropolitan area.

Construction of a surface mass transit line started in 1980 to link the city centre of Porto Alegre to the towns in the north of the metropolitan area, like Canoas, Esteio, Sapucaia do Sul, São Leopoldo and Novo Hamburgo. Line 1 was inaugurated on 2 March 1985 between Mercado and Sapucaia. In December 1997 it was extended to Unisinos. A 2.4 km extension to São Leopoldo was added in November 2000 after two months of trial service. Its current length is 44 km with 22 stations (2014). Average station distance is 2 km, therefore commercial speed is 46 km/h. The longest distance with 3.9 km is between Sapucaia and Unisinos. A trip along the entire line takes 42 minutes. Track gauge is 1600 mm. Fleet of 25 4-car-trains. Platform length 190 m. Overhead catenary at 3000 Vdc.

The Porto Alegre Metrô is operated by TRENSURB.



Porto Alegre Metro Porto Alegre Metro

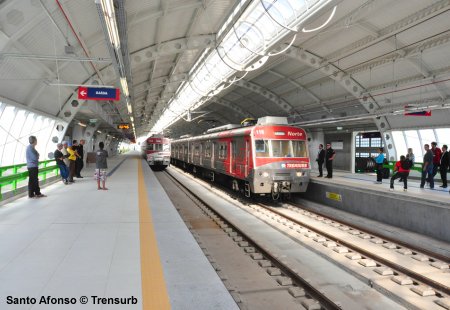

Porto Alegre Metro Santo Afonso

Porto Alegre Metro Porto Alegre Metro

 History

02 Mar 1985: Mercado - Sapucaia
09 Dec 1997: Sapucaia - Unisinos
20 Nov 2000: Unisinos - São Leopoldo
03 July 2012: São Leopoldo - Santo Afonso (4.5 km)
08 May 2014: Santo Afonso - Novo Hamburgo (5 km)

Since 7 May 2014, an 814 m long, elevated air-driven people mover has linked Trensurb's Aeroporto station to the Airport's Terminal 1 (Aeromóvel).

 Projects

A second 19 km line will serve the eastern suburbs and the city centre of Porto Alegre (from Sarandi to Azenha). 16 km will be underground. Between Aeroporto and Cairu on the future Line 2 a 3.1 km link might be built along Benjamin Constant Ave.







 Links

TRENSURB - Empresa de Trens Urbanos de Porto Alegre

Trensurb at Wikipedia.pt
